3G/LTE Mobile Router

3G/LTE Mobile Router

0.00

 – Built-in 2G/3G/4G/LTE
 – Several multi-band combinations
 – Cat4 up to 150Mbps download
 – Up to 7 hours use

Add To Cart

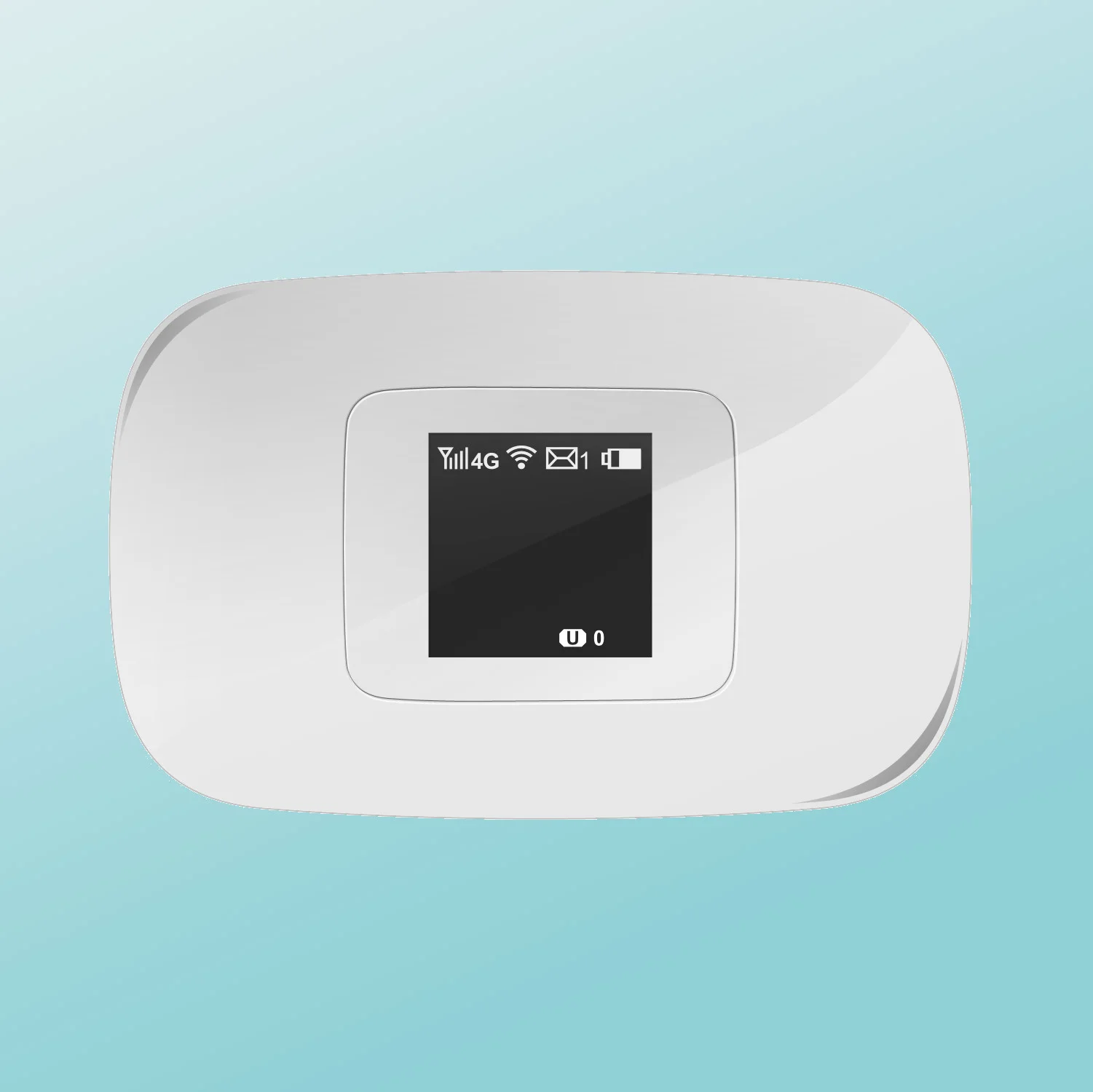

Pingcom L6600-X Series

Model4G/LTE3G2G
L6600-X41, 3, 7, 8, 20, 38, 39, 40, 41(n)1, 2, 82, 3, 8
L6600-X51, 3, 5, 81, 2, 5, 82, 3, 5, 8
L6600-X72, 4, 7, 172, 52, 3, 5, 8
L6600-X82, 3, 4, 5, 7, 28, 382, 5, 82, 3, 5, 8
L6600-X944N/A
L6600-XxOther band combinations upon request


Technical Specification

  • Wireless Standards
  • IEEE 802.11b/g/n

  • Datarate Wi-Fi
  • 11n: 150Mbps
  • 11g: 54Mbps
  • 11b: 11Mbps

  • Receive Sensitivity
  • 150Mbps: -68dBm @ 10%PER
  • 108Mbps: -68dBm @ 10%PER
  • 54Mbps: -68dBm @ 10%PER
  • 11Mbps: -85dBm @ 8%PER
  • 6Mbps: -88dBm @ 10%PER

  • Wireless Security
  • 64/128-bit WEP, WPA/WPA2, WPA/WPA2 PSK (TKIP/AES)
  • Data Rate WAN
  • TDD-LTE
  • - 3GPP R9 ,Category 4, DL 150Mbps  UL  50Mbps
  • FDD-LTE
  • - 3GPP R9 ,Category 4, DL 150Mbps  UL  50Mbps
  • TD-SCDMA
  • - 3GPP R7  DL 2.8Mbps  UL 2.2Mbps
  • UMTS
  • - 3GPP R7  DL 21.6Mbps  UL 5.76Mbps
  • EDGE/GPRS
  • - EGPRS Class12 DL 237kbps  UL 118Kbps
  • - GPRS Class12  DL 85.6kbps UL 42.8kbps
  •
  • Interoperability
  • TDD-LTE & TD-SCDMA
  • TD-SCDMA & GSM
  • TDD-LTE & UMTS
  • FDD-LTE & TD-SCDMA
  • FDD-LTE & UMTS
  • UMTS & GSM
  • Hardware
  • Oled LCM display
  • WPS button
  • Micro USB
  • Single LTE SIM slot, 3GPP 31.101/31.102
  • Battery, 3000mAh, 3,5-4,2V
  •
  • Dimensions
  • 110 x 62 x 15 mm
  •
  • Environmental
  • Operating Temperature, 0℃ - +45℃
  • Storage Temperature, -20℃ - +25℃
  • Relative humidity, 45% - 85%
  •
  • CPU-Platform
  • Marvell 8102
  •
  • Certifications
  • CE
  • FCC
  • RoHS
