750 Mbps 11ac Dual-Band Wi-Fi Repeater

750 Mbps 11ac Dual-Band Wi-Fi Repeater

0.00

 – 11ac dual-band 450 Mbps 1T1R
 – 11n 300 Mbps 2T2R
 – 1 Fast Ethernet LAN Port
 – Repeater or AP Mode
 – Wi-Fi Signal LED Indicator

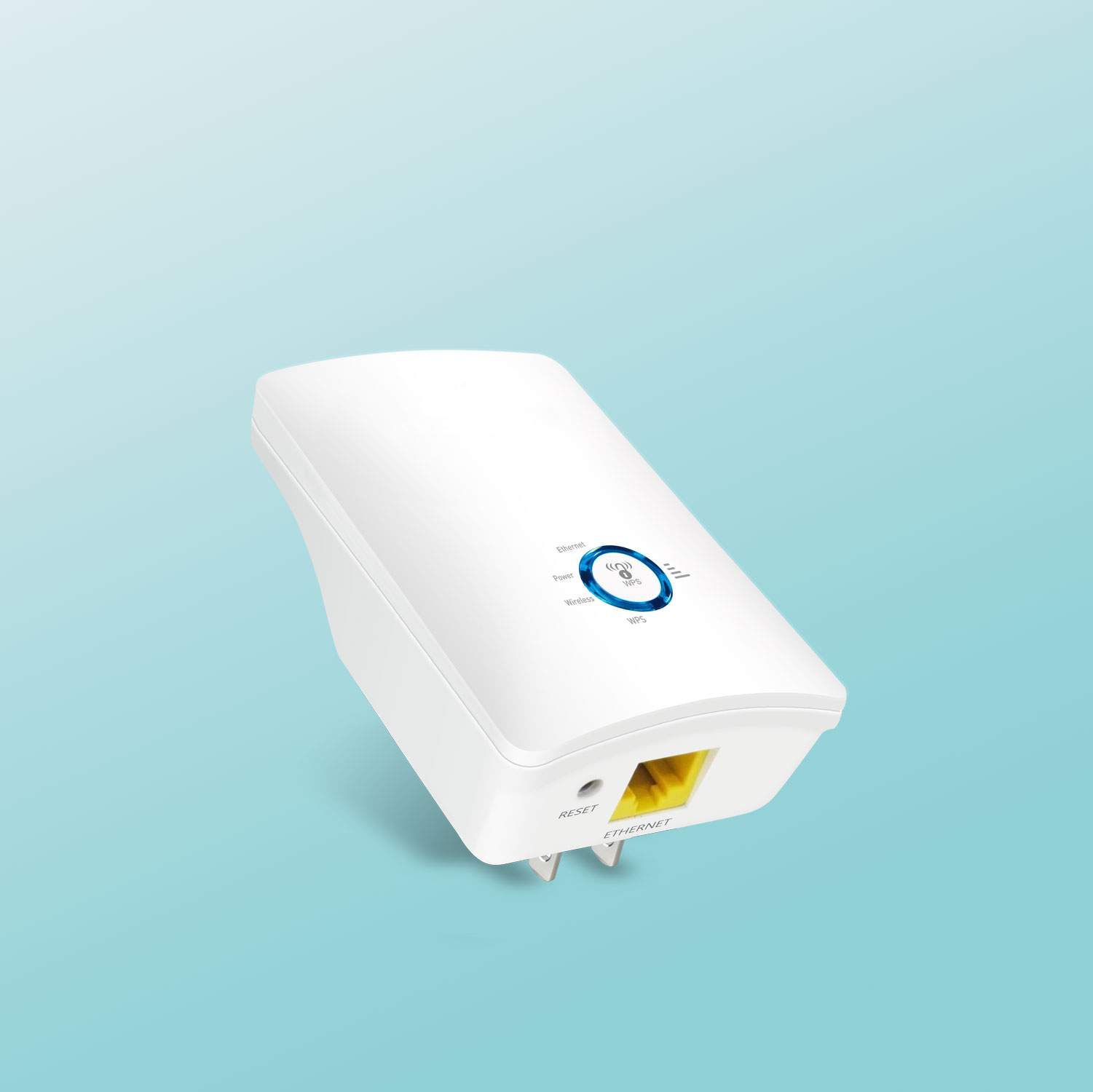

The Pingcom R7905-A1 is a WLAN Repeater which enables you to extend your wireless network easily and share your data over a long wireless distance.

Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices, the Pingcom R7905-A1 dual band support a transfer rate up to 750Mbps. Clients who are located far away from the original router can associate with the wireless LAN through our Pingcom R7905-A1.
The ethernet port allows the Extender to function as a wireless adapter to connect wired devices.

Easy to install and simple to use, the Pingcom R7905-A1 extends your wireless network infrastructure.

Add To Cart


Technical Specification

  • Configuration/Management
  • Web configuration interface; password protected
  • Firmware upgrades through HTTP/TFTP
  •
  • Interfaces
  • 1x FastEthernet LAN Port
  • 1x Power Plug (power source: 100V~240Vac, 50~60 Hz)
  • 1x Reset switch for factory default
  • 2x Internal Antenna
  • 1x Status LED Indicator
  • 1x WPS button
  •
  • Operating Environment
  • Operating Temperature: 0°C~40°C
  • Storage Temperature: -20°C~70°C
  • Humidity: 20%~95% RH
  •
  • CPU-Platform
  • RTL8881AM-VE3 + RTL8192ER
  •
  • Flash / DDR
  • 8 MB / 32 MB
  •
  • Certifications
  • CE, FCC, RoHS, WEEE
  • Features and Functions
  • Wall-plug design, Compact  design
  • Repeater Mode/ Access Point/ Wi-Fi Bridge
  • Operating Frequency : 2.412G~2.484GHz
  • Operating Frequency : 5.1G~5.8GHz
  • Supports 802.11b data rates up to 11 Mbps with automatic fallback to 5.5, 2, and1 Mbps
  • Supports 802.11g data rates up to 54 Mbps with automatic fallback to 48, 36, 24,18, 12, 9, and 6 Mbps
  • Support 802.11n (MIMO 2T2R): Up to 300Mbps (MCS15)
  • Support 802.11ac (1T1R): 433Mbps (5Ghz)
  • Security supports 64/128-bits WEP, WPA,WPA2, WPS
  • Multi-SSID
  • VPN pass through
  • IEEE 802.11i Security supports 64/128-bits WEP, WPA, WPA2, WPS and WDS
  • MAC Address Filter
  • Support Wi-Fi WPS switch button
