VDSL2 1200 Mbps 11ac Dual-Band Wi-Fi Router

VDSL2 1200 Mbps 11ac Dual-Band Wi-Fi Router

0.00

 – 11ac Dual-Band 1200 Mbps 2T2R
 – 4 Port Gigabit Switch
 – Profile up to 30a
 – TR-069

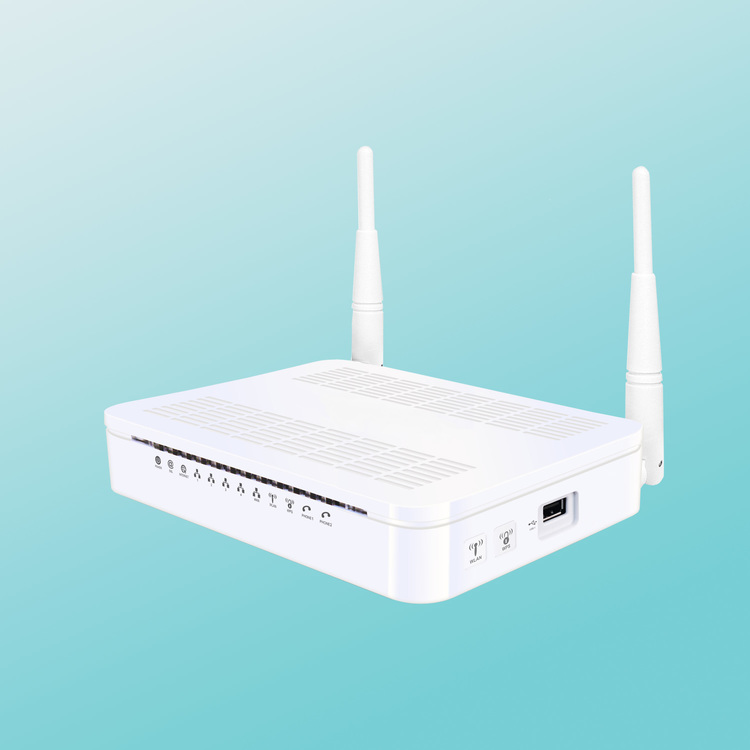

The Pingcom V7901-A2 WLAN 11ac Router is a small and cost effective solution to access the internet connected by VDSL2. It combines an 11ac/n Wireless Access Point, a VDSL2/ADSL2+ modem, a router, a firewall, a USB Host and a four-port switch all in one small and cost effective device.

The integrated router and firewall function allows you to surf the Internet in a secure way. The integrated virtual server let your application pass through the firewall without specific knowledge of settings.

The Pingcom V7901 supports VDSL2 downstream rate up to 150 Mbps and upstream rate up to 100Mbps. ADSL fall back is supported as well.

Add To Cart


Technical Specification

  • VDSL2/ADSL Compliance
  • ITU G.993.1 (VDSL)
  • ITU G.993.2 (VDSL2)
  • ITU 997.1 with profiles up to 30a
  • Backward compatible with ADSL2+
  • ANSI T1.413 Issue 2
  • ITU G.992.1 Annex A/B (G.dmt)
  • ITU G.994.1 (G.hs)
  • ITU G.992.3 Annex A/B (G.dmt.bis)
  • ITU G.992.4 Annex A (G.lite.bis)
  • ITU G.992.5 Annex A/B
  • G.Vectoring
  • Annex A/L/M and B/J
  •
  • PPP/ATM/PTM Support
  • 802.1p VLAN ID supported
  • PPP over ATM PVC (RFC 2364)
  • PPP over Ethernet (RFC 2516)
  • PPPoE pass-through
  • PPP over AAL5 (RFC 2364)
  • User authentication PPP/PAP/CHAP
  • LLC/VC-Mux bridged/routed (RFC 1483/2684)
  • Classical IP over ATM (RFC 2225)
  • Support up to 8 PVCs
  • Auto-negotiating rate adaptation
  • QoS over UBR, CBR, rt-VBR, nrt-VBR, Traffic Shaping
  • OAM F4/F5 Loop back
  • VC and LLC multiplexing
  • Dual-latency on the same copper
  • HDLC PTM on copper, G.INP
  • Support of Dying Gasp (Optional)
  •
  • Firewall/Security
  • IP-/MAC-Filter, Port Trigger
  • URL-/Domain-Blocking, Parental Control
  • Port Forwarding, Denial of Service
  • DMZ, ACL, ALG
  • Networking
  • NAT/NAPT
  • IEEE 802.1d transparent bridging
  • IEEE 802.1q VLAN tagging/pass-through
  • Static route, RIP v1/v2
  • IGMPv1/v2 Proxy/Snooping
  • Dynamic learning of MAC addresses
  • DHCP Server/Client/Relay
  • DHCPv6 incl.PD/Static/Slaac
  • Dynamic DNS and DNS Relay
  • SNTP Client
  • UPnP IGD2, Samba
  • IPv4/IPv6 dual stacks
  • Diagnostic Tools
  • Firewall/Security
  • IP-/MAC-Filter, Port Trigger
  • URL-/Domain-Blocking, Parental Control
  • Port Forwarding, Denial of Service
  • DMZ, ACL, ALG
  •
  • Wi-Fi
  • IEEE 802.11b/g/n/ac 2T2R up to 1200 Mbps
  • Operating Frequency: 2.412G~2.484GHz
  • Operating Frequency: 5.1G~5.8GHz
  • IEEE 802.11e QoS enhancement (WMM)
  • WPA2/WPA/WEP, PSK/Radius/TKIP/AES, WPS
  • Guest-WLAN with up to 4 SSID
  • SSID hiding, AP Isolation
  • Long and short preamble modes
  • Automatic channel selection
  • Transmission power control
  • Load balancing and rate limit
  •
  • Configuration/Management
  • HTTP Web Access (Remote/Local)
  • 2 Login Levels
  • Easy Setup Wizard
  • CLI through telnet, console port
  • SNMPv1/v2/Trap
  • Firmware upgrades by HTTP/TFTP/TR-069
  • Configuration Backup and Restore
  • TR-069/TR-098/TR-104
  • Interfaces
  • 1x VDSL2/ADSL2+ Port (RJ-11)
  • 4x LAN 10/100/1000 Mbps
  • 1x Wi-Fi 11ac
  • 1x WPS Button
  • 1x Wi-Fi ON/OFF Button
  • 1x USB 2.0 OTG (optional)
  • 1x Reset Button
  • 1x Power ON/OFF Switch
  • 1x Power Jack
  •
  • Power Supply
  • 12 VDC/1,5 A
  •
  • High Voltage Surge Protection
  • Up to 10 kV protection on xDSL
  • Up to 10 kV protection on PSU
  •
  • CPU-Platform
  • Realtek RTL8685P
  •
  • Memory
  • 16MB Flash / 64MB RAM
  •
  • Dimensions and Weight
  • 140mm x 128mm x 30mm
  • 190g
  •
  • Certifications
  • CE, FCC, RoHS2, WEEE
  •
  • Operating Temperature
  • Operating: 0ºC–40ºC
  • Storage: -40ºC–70ºC
