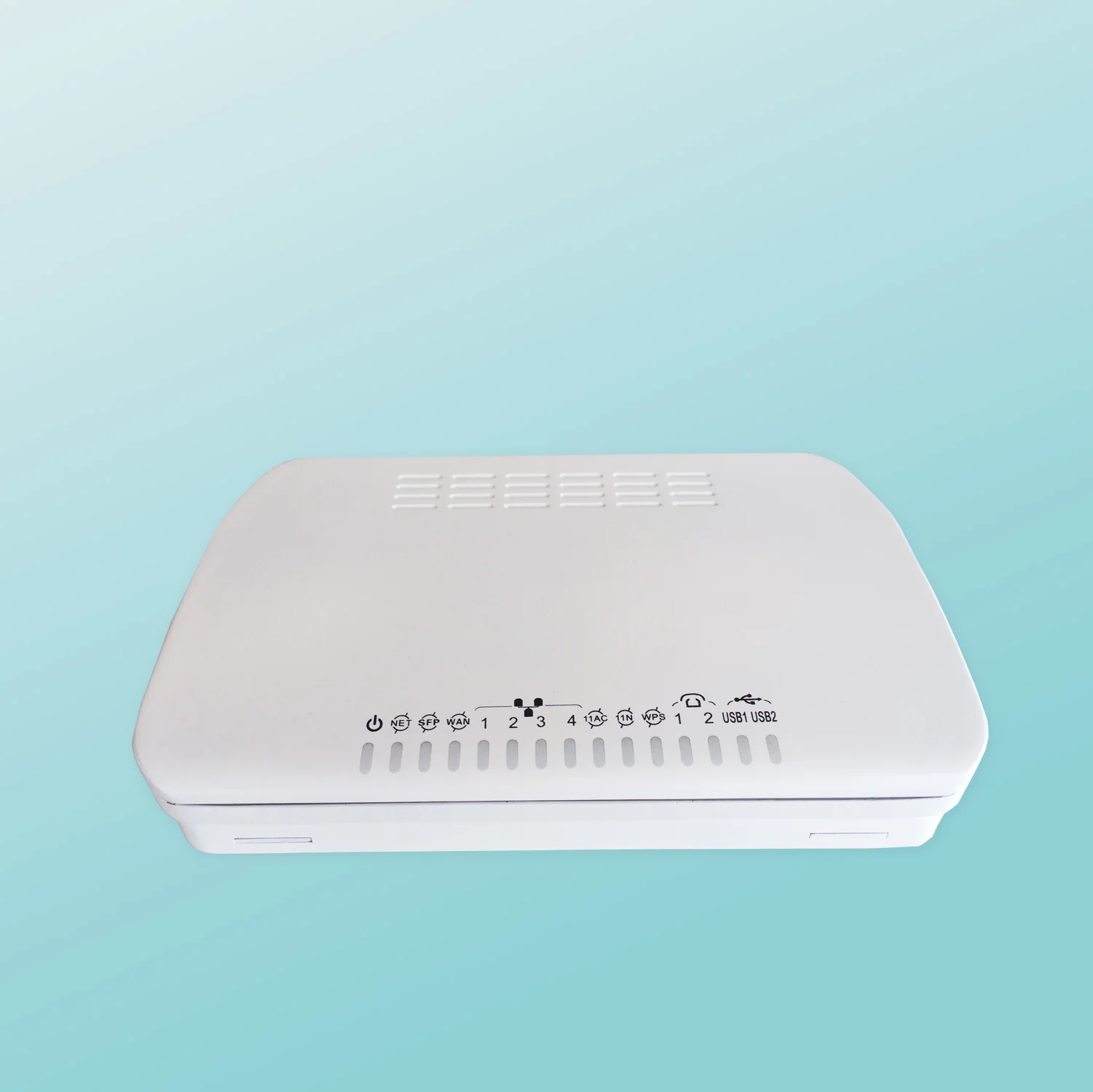

1200 Mbps 11ac ETH/Fiber IAD with 2 FXS

1200 Mbps 11ac ETH/Fiber IAD with 2 FXS

0.00

 – 11ac Dual-Band 1200 Mbps 2T2R
 – 4 Port Gigabit Switch
 – 1 Gigabit WAN Port
 – SFP
 – 2 Voice Ports
 – 1 USB 2.0 Port
 – TR-069

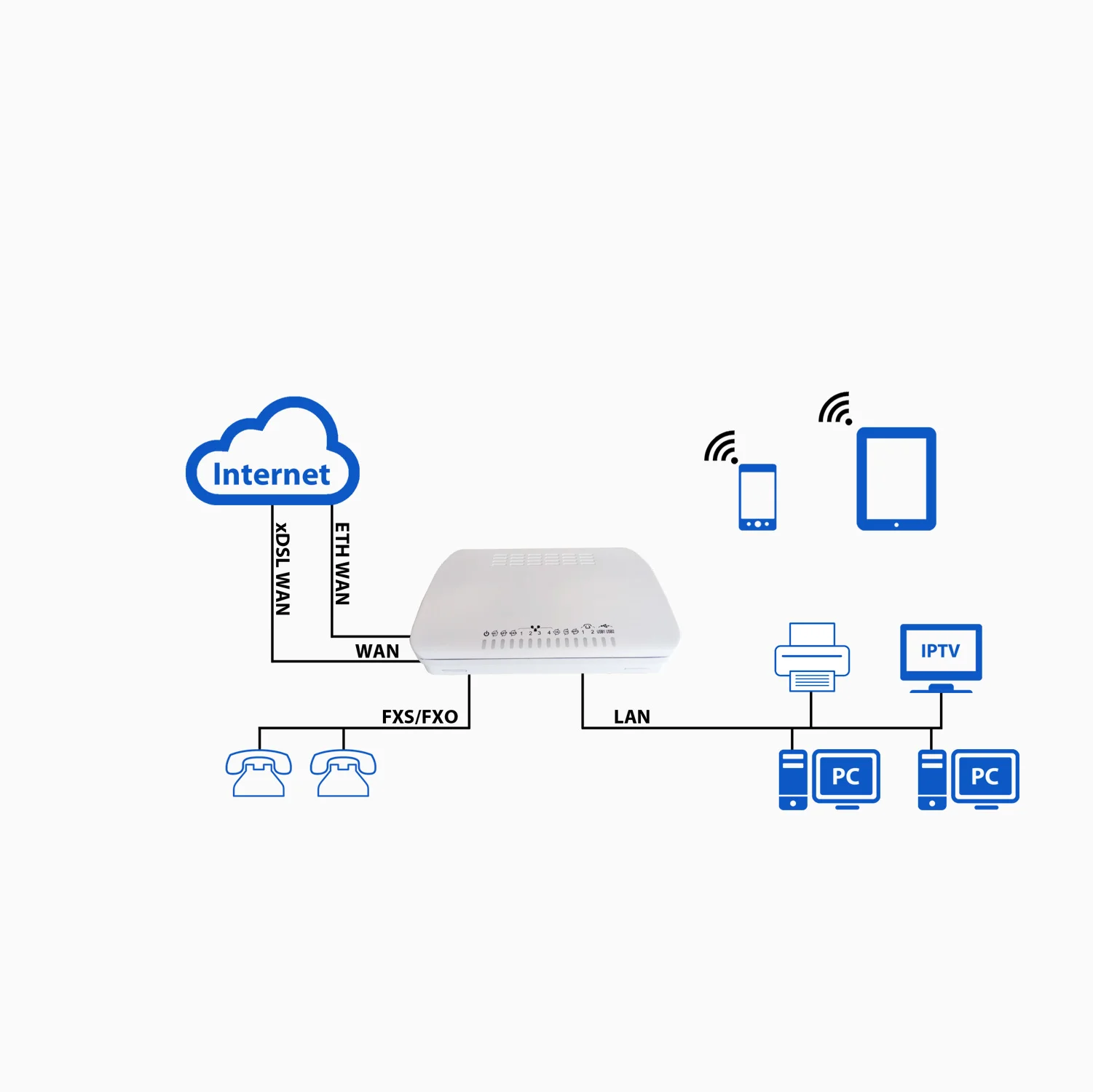

The Pingcom R3921-W1 Fiber IAD Solution provides carriers and users with accelerated access to next-generation network services including internet and intranet access, web-based research, videoconferencing, voice-over-IP (VoIP), gaming applications, ecommerce, IPTV, web hosting and more.

Pingcom IADs offer a versatile and cost-effective way to access voice and data applications via Gigabit Ethernet connections or over WLAN 802.11ac. These units close the gap between traditional telephony and Internet access capabilities by supporting traditional voice features delivered over a packetized network.

Add To Cart


Technical Specification

    • Software Features

    • IPv6 (IPv6 Routing, LAN, DS-Lite)
    • TR-069/TR-104/TR-111 Provisioning
    • TFTP / HTTP Software Upgrade
    • IP-/Port-/MAC-/URL-Filtering/Virtual Server
    • Browser based configuration management
    • Supports TCPMSS option
    •
    • Protocol Support
    • IP, TCP, UDP, TFTP, FTP, RTP, RTCP, ARP, RARP, ICMP, NTP, SNTP, HTTP, HTTPS, DNS, TELNET, DHCP Server, UPnP, DHCP Client, IGMP Proxy, RIP v1/2, SNMP V2c / V1, OSPF, BGP
    •
    • Security
    • Stateful Packet Inspection (SPI) Firewall
    • NAT, DMZ and ALGs
    • Web based authentication levels
    • Anti-IP and MAC spoofing
    • Black/White List
    • SPI with DOS protection
    • MD5 Encryption
    • VPN IPsec, L2TP and PPTP server/client
    •
    • Wi-Fi
    • 802.11ac(5Ghz), 802.11b/g/n(2.4Ghz)
    • Support for 4 SSID, each SSID with individual security, bridging, routing and firewall functions
    • Wi-Fi compliant, Wi-Fi Protected Setup (WPS)
    • WEP, WPA, WPA2, 64-bit WEP, 128-bit WEP
    • SFP Interface
    • Dual fiber single mode (DFSM) 15km,
    • Tx/Rx= 1310nm
    • Bidirectional Single fiber single mode SFSM/BiDi, 20km,Tx=1310nm/Rx=1550nm
    • LC and SC (for BiDi only) connector type

    • Routing Functions
    • NAT (Network Address Translation), PAT (Port Address Translation)
    • ALG (Application Level Gateways)
    • UPnP IGD compliant
    • DHCP client/server
    • DNS Proxy/Relay & Dynamic DNS
    • System log
    •
    • QoS Support
    • WAN: (ToS, DiffServ, IP Precedence
    • Priority Queue, Rate Control
    • 802.1Q (VLAN Tagging), 802.1p (Priority Tag)
    • Flow control, DSCP or 802.11q Queuing priority
    • LAN port Rate Limit
    •
    • IPTV
    • IGMP Proxy/Snooping, IPTV bridge
    •
    • USB 3.0/2.0 Host
    • Printer Server / File Server
    • 3G/4G USB Modem support
    •
    • Voice features
    • G.711 A-law, G.711 mu-law, G.723, G.729
    • T.30/T.38 Fax Relay RTP, T.38 Fax Relay UDP
    • SIP 2.0 functionality
    • Caller ID in FSK
    • G.165/G.168 Echo cancellation up to16ms
    • Register up to two SIP servers
    • By port or device registration
    • Based on IPv4/IPv6 ToS and distinguish service, set different service level according to different package to ensure voice package’s high priority
    • Based on IEEE802.1p 4-level priority, Tag high priority on voice package to ensure voice quality
    • Call features
    • Peer to Peer Call
    • Call Hold / Retrieve, Waiting, Pick Up
    • Call Forward - unconditional, busy, no answer
    • Call Transfer - attended, unattended
    • Do Not Disturb, Speed Dialing, Repeat Dialing, Three-way Calling, MWI (RFC-3842)
    • Hot Line and Warm Line
    • Call Routing by Prefix Number
    •
    • Interfaces
    • 1x WAN SFP Port for P2P applications
    • 1x WAN 10/100/1000BASE-TX
    • 4x LAN 10/100/1000BASE-TX
    • 2x POTS Ports FXS (RJ-11, black)
    • 1x USB Host Port (1x2.0, 1x3.0)
    • 1x WPS connect Button
    • 1x WLAN ON/OFF switch
    • 1x Reset Button to reboot or reset to factory settings
    • 1x Power on/off switch
    •
    • Optional
    • Fiber/Cable Tray
    • CATV Module
    • LTE
    •
    • Dimensions and Weight
    • 204mmx151mmx37mm
    • 600g
    •
    • CPU-Platform
    • MTK 7621
    •
    • Power Supply
    • AC100V-240V, DC12V/2A, 50/60 Hz
    •
    • Certificate
    • CE, FCC, RoHS, UPnP
