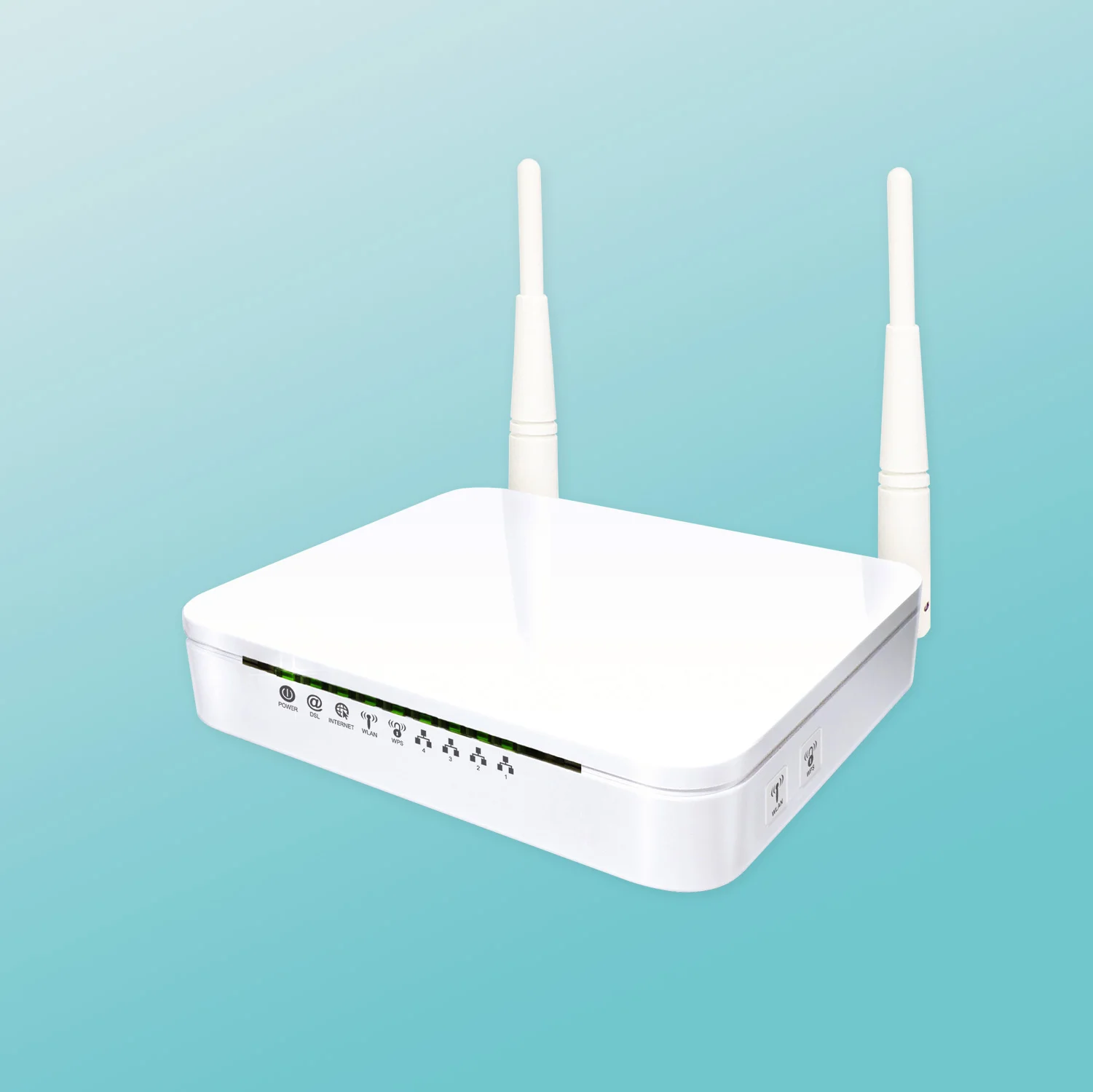

ADSL2+ 4 Port 300 Mbps 11n Wi-Fi Router

ADSL2+ 4 Port 300 Mbps 11n Wi-Fi Router

0.00

 – 11n 300 Mbps 2T2R
 – 4 Port Switch
 – TR-069
 – High voltage surge protection

Add To Cart



Pingcom A7600-A Series

ModelAnnexMemoryDual FWPSU SPUDSL SPU
A7600-A1A2/16 MBNO6 kV6 kV
A7600-A2B2/16 MBNO6 kV6 kV
A7600-A3A4/16 MBYES10 kV10 kV
A7600-A4B4/16 MBYES10 kV10 kV


Technical Specifiactions

  • ADSL Compliance
  • ANSI T1.413 Issue 2
  • ITU G.992.1 Annex A/B (G.dmt)
  • ITU G.994.1 (G.hs)
  • ITU G.992.3 Annex A/B (G.dmt.bis)
  • ITU G.992.4 Annex A (G.lite.bis)
  • ITU G.992.5 Annex A/B
  • Annex A/L/M and B/J
  •
  • PPP/ATM Support
  • PPP over ATM PVC (RFC 2364)
  • PPP over Ethernet (RFC 2516)
  • PPPoE pass-through
  • PPP over AAL5 (RFC 2364)
  • User authentication PPP/PAP/CHAP
  • LLC/VC-Mux bridged/routed (RFC 1483/2684)
  • Classical IP over ATM (RFC 2225)
  • Support up to 8 PVCs
  • Auto-negotiating rate adaptation
  • QoS over UBR, CBR, rt-VBR, nrt-VBR, Traffic Shaping
  • OAM F4/F5 Loop back
  • VC and LLC multiplexing
  • Support of Dying Gasp (Optional)
  •
  • Networking
  • NAT/NAPT
  • IEEE 802.1d transparent bridging
  • IEEE 802.1q VLAN tagging/pass-through
  • Static route, RIP v1/v2
  • IGMPv1/v2 Proxy/Snooping
  • Dynamic learning of MAC addresses
  • DHCP Server/Client/Relay
  • DHCPv6 incl.PD/Static/Slaac
  • Dynamic DNS and DNS Relay
  • SNTP Client
  • UPnP IGD2
  • IPv4/IPv6 dual stacks
  • Diagnostic Tools



  • Firewall/Security
  • IP-/MAC-Filter, Port Trigger
  • URL-/Domain-Blocking, Parental Control
  • Port Forwarding, Denial of Service
  • DMZ, ACL, ALG
  •
  • Wi-Fi
  • IEEE 802.11b/g/n 2T2R up to 300 Mbps
  • Operating Frequency: 2.412G~2.484GHz
  • IEEE 802.11e QoS (WMM)
  • WPA2/WPA/WEP, PSK/Radius/TKIP/AES, WPS
  • Guest-WLAN with up to 4 SSID
  • SSID hiding, AP Isolation
  • Long and short preamble modes
  • Automatic channel selection
  • Transmission power control
  • Load balancing and rate limit
  •
  • Configuration/Management
  • HTTP Web Access (Remote/Local)
  • 2 Login Levels
  • Easy Setup Wizard
  • CLI through telnet, console port
  • SNMPv1/v2/Trap
  • Firmware upgrades by HTTP/TFTP/TR-069
  • Configuration Backup and Restore
  • TR-069/TR-098/TR-104



  • Interfaces
  • 1x ADSL2+ Port (RJ-11)
  • 4x LAN 10/100 Mbps
  • 1x Wi-Fi 11n
  • 1x WPS Button
  • 1x Wi-Fi ON/OFF Button
  • 1x USB 2.0 (optional)
  • 1x Reset Button
  • 1x Power ON/OFF Switch
  • 1x Power Jack
  •
  • Power Supply
  • 12 VDC/0.5 A
  •
  • High Voltage Surge Protection
  • Up to 10 kV protection on xDSL
  • Up to 10 kV protection on PSU
  •
  • CPU-Platform
  • Realtek RTL8676S
  •
  • Dimensions and Weight
  • 140mm x 128mm x 30mm
  • 188g
  •
  • Certifications
  • CE, FCC, RoHS2, WEEE
  •
  • Operating Temperature
  • Operating: 0ºC–40ºC
  • Storage: -40ºC–70ºC
